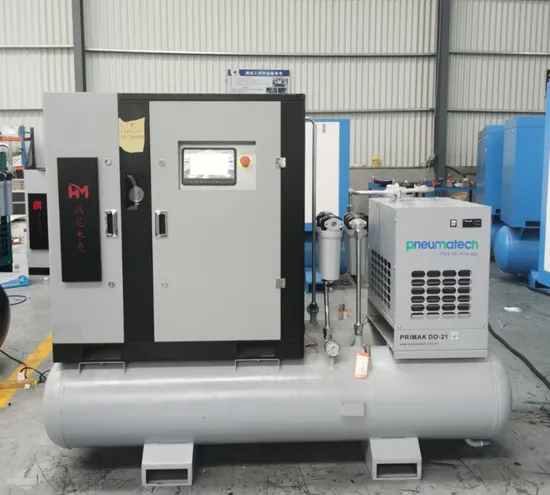

Industrial IP55 Smart Control Pm Variable Speed Stationary Screw Air Compressor
- Overview
- Product Description
- Product Parameters
- Company Profile
- Certifications
- Packaging & Shipping
- After Sales Service
- FAQ
Basic Info.
| Model NO. | HM serise |
| Lubrication Style | Lubricated |
| Cooling System | Air Cooling |
| Power Source | AC Power |
| Cylinder Position | Vertical |
| Structure Type | Closed Type |
| Installation Type | Stationary Type |
| Type | Single Screw Compressor |
| Voltage | 220V/380V/Customizable |
| Power | 5/7.5/11/15/22/37kw |
| Pressure | 5-30 |
| Volumetric Capacity | 1-15m³/Min |
| Certification | CE ISO |
| Keywords | Air Compressor Screw |
| OEM | OEM Services Provided Color Logo |
| Product Name | Rotary Screw Air Compressor |
| Application | General Industry |
| Motor | Pm Motor,IP54,IP55,IP23 |
| Motor Power | 7.5kw-160kw/ 10HP-200HP |
| Capacity | High Performance |
| Feature | High Efficiency Low Cost |
| Compressed Medium | Air Gas |
| Compression Stage | Single Stage |
| Transport Package | Export Standard Wooden Packing |
| Specification | 1980*900*1920mm |
| Trademark | Hansmok |
| Origin | Shandong |
| HS Code | 8414809090 |
| Production Capacity | 500 Set/Month |
Product Description
Industrial 16bar 10bar 20bar 4-in-1 all in one screw air compressor high pressure air compressor for laser cutting Power output: 7-400 kW / 10-500 hpDelivery rate: 0.8-71.2 m3/min / 28-2514 cfmPressure range: 7-30 bar1. Improve air quality: Dry tanks can effectively remove moisture and impurities in the air, while wet tanks can play a role of buffering and preliminary filtration, thereby jointly improving the quality of the output air, making it more pure and dry, and meeting the application scenarios with high air quality requirements.
2. Enhance stability: The double tank design helps to balance the system pressure, reduce pressure fluctuations, make the operation of the air compressor more stable and reliable, and reduce the probability of failure.
3. Improve efficiency: Stable pressure and high-quality air quality help to improve the working efficiency of gas equipment, thereby improving the efficiency of the entire production process.
What kind of air compressor is needed for the laser cutting machine? The quality of compressed air has a direct impact on the quality of laser cutting. For this reason, the fiber laser air compressor must be equipped with a good dryer to remove the moisture as much as possible. Thus an air compressor with an integrated dryer is necessary. Besides, it's also necessary to remove the oil and dust particles from the compressed air so the high precision filter group is also required. Besides, the air compressor for laser cutting should make the laser cutting machine work continuously. To ensure this, an air tank should be mounted in the air compressor so as to guarantee the volume of the compressed air. Thus the mounted air compressor, or in other words, the tank air compressor is an ideal choice for laser cutting. To sum up, the integrated air compressor is the best choice for a laser cutting machine. Hansmok provides the 4-in-1 Integrated air compressor: with a high-performance air compressor, air tank of large volume, air dryer, and high precision filter group, this 4-in-1 Air Compressor is your best choice for laser cutting machine.
Hansmok air compressor manufacturing factory has been in the business for over 10 years and we take pride in producing high-quality and reliable air compressors to meet the diverse needs of our clients. Our manufacturing facility is equipped with the latest technology and state-of-the-art machinery to ensure efficient production processes. We specialize in the production of high quality air compressors for various industries such as laser cutting, automotive, manufacturing, and healthcare. Our compressors are known for their durability, energy efficiency, and low maintenance costs. Our team of skilled engineers and technicians work closely with our clients to understand their specific requirements and design custom-built air compressors. We also provide timely after-sales service and support to ensure our clients have a hassle-free experience. We are committed to exceeding our clients' expectations and delivering products of the highest quality. With our experience and expertise, we are confident that we can provide the best air compressors for your business needs.
We will customize suitable wooden box packaging for your screw machine, so that your machine can receive better protection duringtransportation. When receiving the goods, it will be a perfect screw machine.
Q1: Are you a manufacturer or trading company?A: We are professional manufacturer with big modern factory in Shandong,China. Both OEM & ODM service can be accepted.Q2: What's your delivery time?A: Generally 3 to 7 days, if urgently order, please contact our sales in advance.Q3: How long is your air compressor warranty?A: One year for the whole machine and two years for screw air end, except consumble spare parts.Q4: What's payment term?A: T/T, L/C, D/P, Western Union, Paypal , Credit Card, and etc. Also we could accept Dollar, RMB, Euro and other currency.Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Q5: How about your customer service?A: 24 hours on-line service available. 48 hours problem solved promise.Q6: How about your after-sales service?A: 1. Provide customers with installation and commissioning online instructions.2. Well-trained engineers available to overseas service. 3. Worldwide agents and after service avaiable
How Often Do I Need to Replace My Air Intake Filter?
Air compressors with air intake filters need to be cleaned weekly. If your filter has built up so much debris that you can't get it completely clean, or the filter is torn, you should replace it right away.
How Do I Control Contaminants in My Compressed Air System?
It's important to have an effective air filtration system to keep your compressed air clean. Geso systems can provide you with all the air filters you need to help keep your compressed air clean.
Do I Need an Air Dryer in Addition to My Air Compressor?
It's often a good value for you to add an air dryer to your air compressor system, as your air compressor can put a great deal of water into the compressed air system. Your air dryer could potentially remove gallons of water each day.
Many businesses rely on air compressors to accomplish work safely and efficiently. Some industries that use compressors include:
· Agriculture · Manufacturing · Automobiles · Pharmaceutical · Food and beverage · Dental and medical · Construction
Product Description
INTEGRATED SCREW AIR COMPRESSOR FEATURES
1.FOUR-IN-ONE ONE-PIECE CONVENIENT INSTALLATION AND OPERATION ON SITE. 2.ALL STEEL PIPE CONNECTIONS BEAR HIGH PRESSURE WITHOUT LEAKAGE POINT. 3. Rotary screw compressors are designed for a wide range of users across various industries and applications. They are powered by two counter-rotating screws that compress air as it moves through the compressor.
| 15kw - 16barTechnical Parameters of Air screw compressor | ||
| Screw air compressor | Volume Flow(m³/min) | 1.5m³/min |
| Power | 15kw | |
| Pressure(Mpa) | 1.58Mpa | |
| Cooling method | Air Cooling | |
| Start Method | frequency converter | |
| Electricity | 380V/50Hz | |
| freeze dryer | Free Air Deliver | 2.6m³/min |
| Pressure(Mpa) | 1.6Mpa | |
| Inlet Temperature | ≤80ºC | |
| Ambient Temperature | <45ºC | |
| Pressure Dew-Point | 2-10ºC | |
| Outlet diameter | G1 | |
| Fine filter*6 | Free Air Deliver | 3.0m³ |
| Pressure | ≤2.0Mpa | |
| Exhaust dust content | 0.01um | |
| Outlet diameter | RP3/4 | |
| Air Tank*2 | Gas storage tank capacity | 300L*2 |
| Pressure | 1.58Mpa | |
| Inlet diameter | RP3/4 | |
| Outlet diameter | RP3/4 | |
| Temperature | 150ºC | |
| Safety valve | RC1/2 | |
| Drain valve | RC1/2 | |
